Airflood IP44 10W/840 800lm BK

Airflood Floodlight 10W 4000K 800lm Beam angle Extreme wide beam >80°; No dim; IP44; IK08; Protection cl. I; L70B50 25000h; LED not exchangeable; CRI>80; Ending; 3x1mm²; Housing al; Colour bk; Cover Plastic, opal

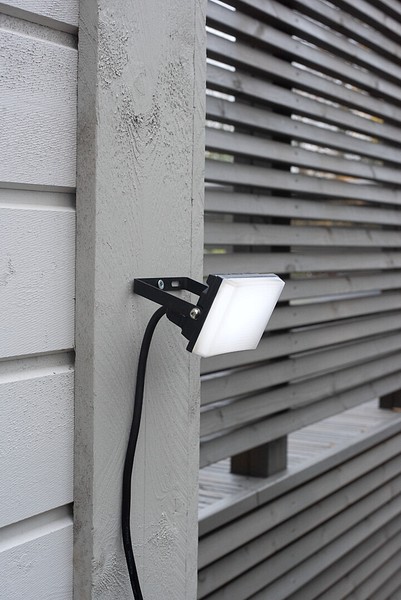

Modern and compact, the Airflood led floodlight is designed for safe and practical lighting of yards, storehouses, traffic routes and car parks. With its edgeless design, the floodlight looks perfect on many different buildings, and the front panel sheds a pleasantly uniform light. Each floodlight has an adjustable lighting angle. You can choose a black or a white model. The floodlights have a plug coupling and a rubber cable. Models with sensor also available.

Code

4547200

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

The frame is made of pressure moulded aluminium and the globe of polycarbonate.

White, RAL9010 and black, RAL9011.

Protection class I.

Wall installation.

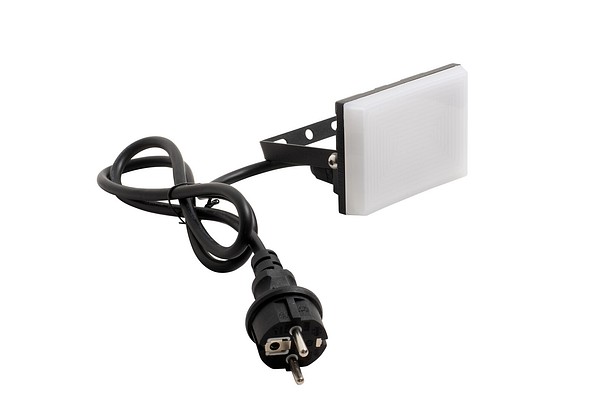

Plug coupling and rubber cable 0,8 m.

Installation height 2–4 m.

Colour temperature 4000K, CRI > 80 / Ra > 80.

IP44.

IK08.

Fixed led: 10W / 800 lm, 20W / 1600 lm, 30W / 2400 lm, 50W / 4000 lm.

Operating ambient temperature -20 … 35 °C.

Useful life L70 25 000 h.

Technical details

Codes and names
Airam code
A5AIRA
GTIN
6435200277930
General name
Floodlight
Product family
Airflood
Technical name
IP44 10W/840 800lm BK
Mounting
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
1
Connection type
Other
Fit for workplace acc. EN 12464-1
No
Structure
Adjustability
Swivelling
Lamp type
LED not exchangeable
With lamp
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Housing colour
Black
Cover material
Plastic, opal
Surface brushed
No
Control gear included
No
Reflector
White
Energy efficiency class of light source according to EU regulation 2019/2015
E
Emergency power supply integrated
No
Dimming and control
With movement sensor
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Total harmonic distortion
20
Suitable for lamp power (min) (W)
10
Suitable for lamp power (max) (W)
10
Maximum system power (W)
10
Power factor
0,90
Luminaire efficacy (lm/W)
80
Photometric data
Light distributor
Diffuser lens/optic/panel
Beam angle
Extreme wide beam >80°
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
4000
Colour temperature (max) (K)
4000
Colour temperature switchable
No
Luminous flux (min) (lm)
800
Luminous flux (max) (lm)
800
Effective luminous flux (lm)
800
Lumen setting adjustable
No
Beam angle adjustable
No
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM6
Unified Glare Rating (UGR)
24
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
25000
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-20
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
40
Measurements
Length (mm)
70
Width (mm)
105
Height/depth (mm)
102
