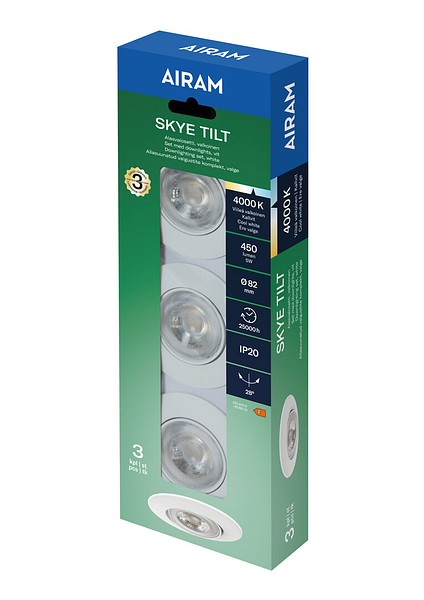

Skye Tilt IP20 5W/840 PCC WH 3-SET

Skye Tilt Downlight set 5W 4000K 450lm Beam angle Medium beam 20-40°; No dim; IP20; IK03; Protection cl. II; L70B50 25000h; LED not exchangeable; CRI>80; SDCM6; Ending; 2x0.75mm²; Housing Plastic; Colour wh; Cover Plastic, transparent

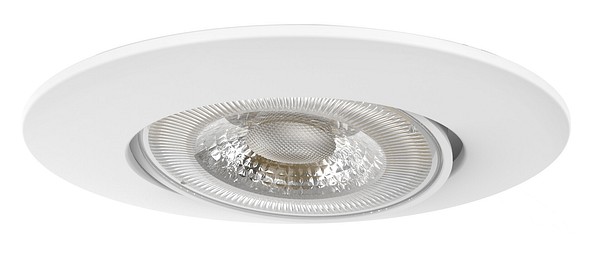

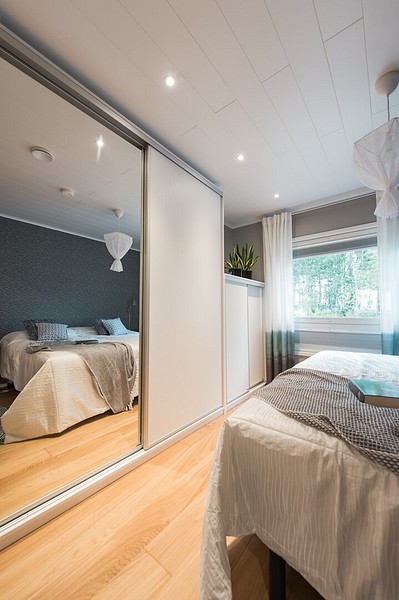

The low-profile Skye Tilt is an ideal choice for general and accent lighting. The IP20 models are suitable for dry domestic spaces. Light beam can be adjusted +/-28°. The extensive range offers several colour options. You can also select a three-luminaire set. The available colour temperatures are clean 3,000 K or bright 4,000 K white.

Code

4146529

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Polycarbonate housing and diffuser. 20 cm cable.

White, chrome or nickel.

Beam angle 36°.

Protection class II.

Recessed mounting on a ceiling. Connection and linking via a separate junction box.

Max. installation height 4 m.

Colour temperatures 3,000 K and 4,000 K. CRI > 80 / Ra > 80.

MacAdam 6 SDCM.

IP20/IP20.

IK03.

Integrated LED 5W, 450 lm.

On/Off.

Ambient temperature range 0 °C to 25 °C.

Rated lifetime L70 25,000 h (Ta 25 °C).

Technical details

Codes and names
Airam code
A1SKYA
GTIN
6435200273222
General name
Downlight set
Product family
Skye Tilt
Technical name
IP20 5W/840 PCC WH 3-SET
Mounting
Suitable for recessed mounting
Yes
Suitable for surface mounting
No
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Type of wiring
Ending
Number of poles
2
Conductor cross section (mm²)
0,75
Connectable conductor cross section (min) (mm²)
0,75
Connectable conductor cross section (max) (mm²)
2,50
Connection type
Screwless terminal
Fit for workplace acc. EN 12464-1
No
Structure
Adjustability
Swivelling
Lamp type
LED not exchangeable
With lamp
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing colour
White
Cover material
Plastic, transparent
Surface brushed
No
Control gear included
Yes
Reflector
High-gloss
Energy efficiency class of light source according to EU regulation 2019/2015
F
Emergency power supply integrated
No
Dimming and control
With movement sensor
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Type of control gear
Not required
Total harmonic distortion
120
Suitable for lamp power (min) (W)
5
Suitable for lamp power (max) (W)
5
Maximum system power (W)
5
Power factor
0,50
Luminaire efficacy (lm/W)
90
Photometric data
Light distributor
Refractor lens
Light sharing
Symmetric
Beam angle
Medium beam 20-40°
Light outlet
Direct
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
4000
Colour temperature (max) (K)
4000
Colour temperature switchable
No
Luminous flux (min) (lm)
450
Luminous flux (max) (lm)
450
Effective luminous flux (lm)
450
Colour consistency (McAdam ellipse)
SDCM6
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
25000
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25
Measurements
Length (mm)
82
Width (mm)
82
Height/depth (mm)
30
Outer diameter (mm)
82
Built-in length (mm)
68
Built-in width (mm)
68
Built-in height/depth (mm)
65
Recess diameter (min) (mm)
63
Recess diameter (max) (mm)
67
