Compact Outdoor

Compact Outdoor is an adjustable downlight range, with full IP65 classification. The luminaires are particularly well suited for use in wet spaces and on exterior surfaces, eaves and open shuttering, as well as terrace roof structures. Colour temperatures: 3000 K and 4000 K. The luminaire is dimmable.

Show Product Versions Downloads

Product Overview

Aluminium housing and acrylic diffuser.

White powder-coated, RAL 9010. Black powder-coated, RAL 9005.

Protection class II.

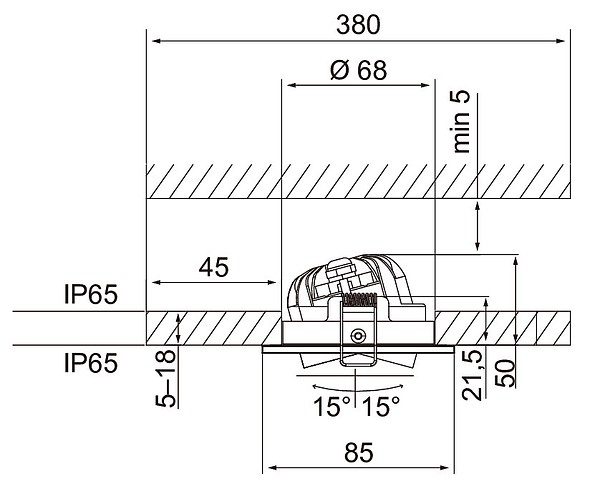

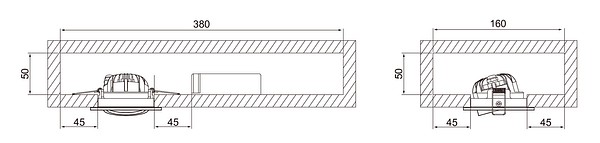

Recessed mounting on a ceiling.

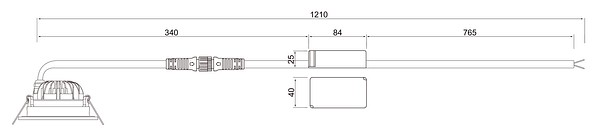

Connecting wire 2 x 0.75 mm2. Connection in a separate box.

Installation height 2–4 m.

Adjustable, can be turned +/-15 degrees.

Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.

MacAdam 3 SDCM.

IP65/IP65.

IK03.

Integrated LED 5 W / 500 lm.

Dimming: rising- and trailing-edge control.

Ambient temperature range -20 … 25 °C.

Rated lifetime L70 100 000 h.

Rated lifetime L80 65 000 h.

Power source service life 50 000 h.
