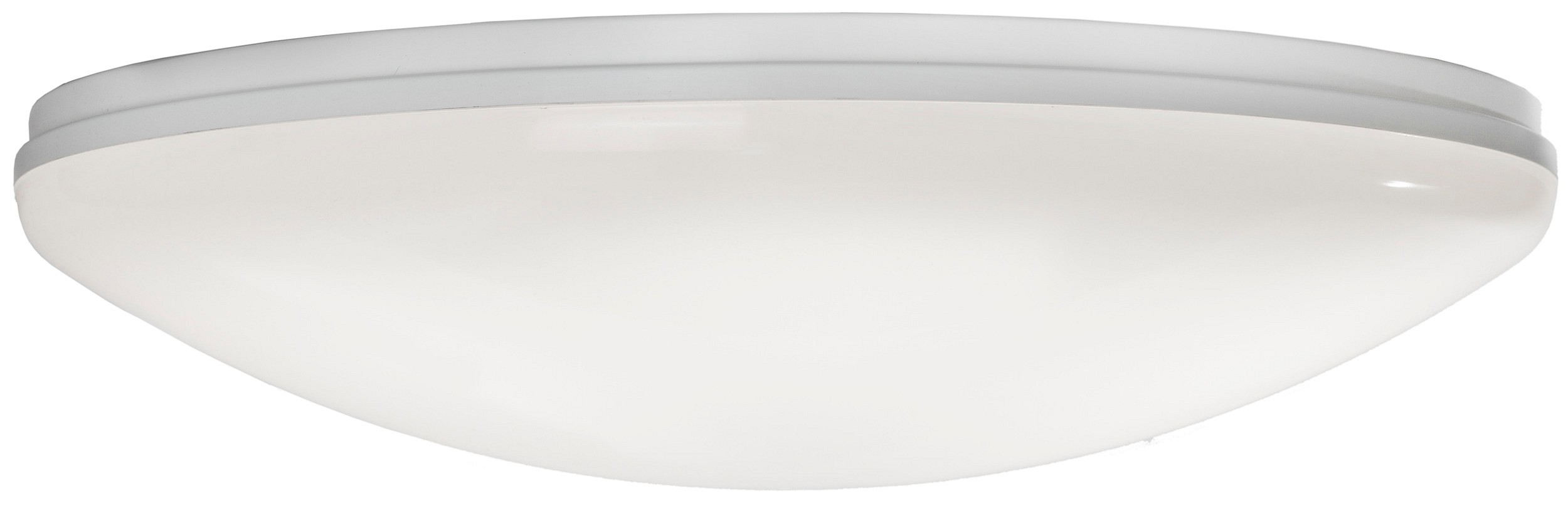

Fenix Duo 400 IP44 18W 830/840

Fenix Duo Surface mounted luminaire 18W 3000K/4000K 1900lm No dim; IP44; IK10; Protection cl. II; L70B50 35000h; LED not exchangeable; CRI>80; SDCM5; Suitable for through wiring; 3x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal

The splash-proof Fenix Duo plafond is suitable for general lighting in both dry and humid indoor spaces. Illuminates spaces evenly, the colour temperature of the light is changeable (CCT 3000 K / 4000 K). Durable and thin frame, surface mounting. Long lifespan. The collection includes three different sizes and a RA model with a radar detector.

Code

9610497

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Plastic frame (PC), opal diffuser (PC).

White, RAL 9016.

Surface mounting on wall or ceiling (directly to joint box), screw joint 3 x 2,5 mm², suitable for cord feed-through.

Colour temperature CCT 3000 K / 4000 K.

Colour rendering index 80-89 (CRI≥80).

Enclosure class IP44.

Shock resistance IK10.

Fixed LED 9 W 750 lm, 12 W 1100 lm or 18 W 1900 lm. RA model 12 W 1100 lm.

Ambient temperature range -0...25 °C.

Lifespan L70B50 35000H.

Round shape, three sizes and wattages (260 mm, 8 W / 350 mm, 12 W / 400 mm, 18 W) and a model with radar detector (350 mm, 12 W).

Technical details

Codes and names
Airam code
A1FENC
GTIN
6435200284495
General name
Surface mounted luminaire
Product family
Fenix Duo
Technical name
IP44 18W 830/840 PCO WH
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Suitable for emergency lighting
No
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Crimping
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing surface protection
Plastic-coated
Housing colour
White
Cover material
Plastic, opal
Control gear included
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
F
Emergency power supply integrated
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
85
Nominal current (max) (mA)
85
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
18
Suitable for lamp power (max) (W)
18
Maximum system power (W)
18
Luminaire efficacy (lm/W)
105
Power factor
0,90
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Colour consistency (McAdam ellipse)
SDCM5
Light outlet
Direct
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
1900
Colour temperature (min) (K)
3000
Colour temperature (max) (K)
4000
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
Discrete positions
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
35000
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25

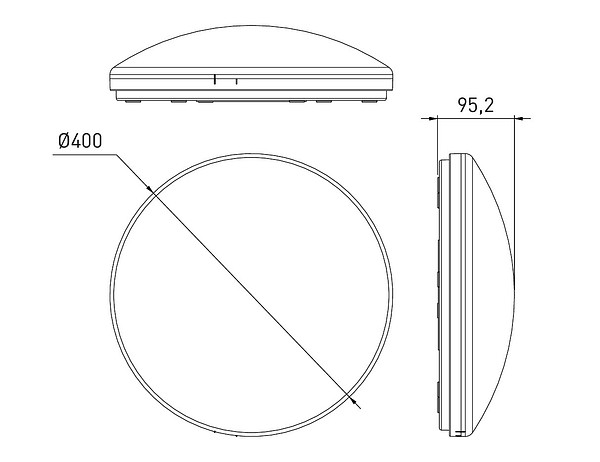

Measurements
Width (mm)
400
Height/depth (mm)
95,20
Length (mm)
400
Outer diameter (mm)
400
