Slim Duo Fix IP44 8W 830/840 DA2 WH

Slim Duo Fix Downlight 8W 3000K/4000K 650lm Beam angle Extreme wide beam >80°; DALI-2; IP44; IK07; Protection cl. II; L70B50 100000h; LED not exchangeable; CRI>80; SDCM5; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, opal

The robust Slim Duo Fix is a downlight with a changeable colour temperature and good dimmer features, intended especially for renovation projects. With its opal diffuser, the Slim Duo solution discreetly blends in with a white ceiling. It is designed for use in toilet facilities, corridors and lobbies.

Code

a2slja-dali

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Die-cast aluminium housing and acrylic diffuser

White, RAL 9010.

Protection class II.

Recessed mounting on a ceiling.

Linkable: Dimmable and Casambi-models max 3 x 2,5 mm2. Dali-2 models max 5 x 2,5 mm2. Spring terminal blocks.

Installation height 2–4 m.

Colour temperatures 3000 K and 4000 K (changeable from the luminaire). CRI > 80 / Ra > 80.

MacAdam 5 SDCM.

IP20/IP44.

IK07.

Integrated LED 8 W: 3000 K, 600 lm / 4000 K, 650 lm.

Dimming: rising- and trailing-edge control, Dali-2 with push-button control (230 V); and Casambi.

Ambient temperature range 0 … 25 °C.

Rated lifetime L70 100 000 h (Ta25°C).

Rated lifetime L80 100 000 h (Ta25°C).

Technical details

Codes and names
Airam code
A2SLJA-DALI
GTIN
6435200272126
General name
Downlight
Product family
Slim Duo Fix
Technical name
IP44 8W 830/840 DA2 ACO WH Fix
Mounting
Suitable for recessed mounting
Yes
Suitable for surface mounting
No
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP44
Emergency function monitoring system
None
Type of wiring
Suitable for through wiring
Number of poles
5
Conductor cross section (mm²)
2,50
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Connection type
Screwless terminal
Max. number of luminaires per miniature circuit breaker B16
112
Max. number of luminaires per miniature circuit breaker C16
224
Fit for workplace acc. EN 12464-1
No
Structure
Adjustability
Not adjustable
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
White
Cover material
Plastic, opal
Surface brushed
No
Control gear included
Yes
Exchangeable control gear
Yes
Reflector
None
Energy efficiency class of light source according to EU regulation 2019/2015
F
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
Dimming and control
With movement sensor
No
With presence indicator
No
Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
Yes
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
Yes
No dimming function
No
Constant luminous flux control
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Bluetooth operated
No
Compatible with Google Assistant
No
Compatible with Casambi
No
Compatible with Amazon Alexa
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
200
Nominal current (max) (mA)
200
Type of control gear
LED operating device current-controlled
Total harmonic distortion (THD) (%)
20
Total harmonic distortion
20
Suitable for lamp power (min) (W)
8
Suitable for lamp power (max) (W)
8
Maximum system power (W)
8
Luminaire efficacy (min) (lm/W)
82
Luminaire efficacy (max) (lm/W)
82
Power factor
0,90
Luminaire efficacy (lm/W)
82
Photometric data
Light distributor
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
3000
Colour temperature (max) (K)
4000
Colour temperature switchable
Discrete positions
Luminous flux (min) (lm)
600
Luminous flux (max) (lm)
650
Effective luminous flux (lm)
650
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
600
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
650
Lumen setting adjustable
No
Flickering value Pst LM
1
Beam angle adjustable
No
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM5
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
100000
Rated life time L80/B50 at 25 °C
100000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
80
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
70
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
10
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25

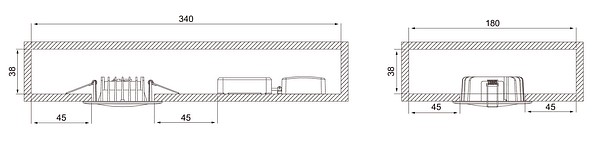

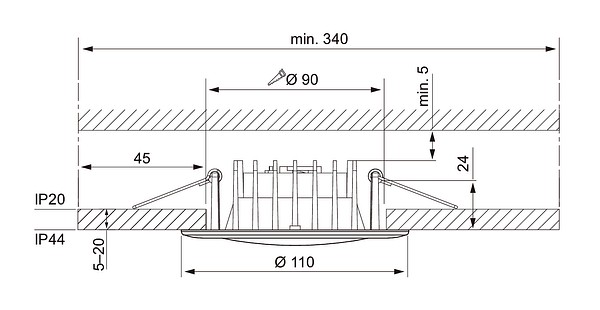

Measurements
Length (mm)
110
Width (mm)
110
Height/depth (mm)
41
Outer diameter (mm)
110
Built-in length (mm)
90
Built-in width (mm)
90
Built-in width (min) (mm)
90
Built-in width (max) (mm)
90
Built-in height/depth (mm)
38
Installation height (min) (mm)
2000
Installation height (max) (mm)
4000
Recess diameter (min) (mm)
90
Recess diameter (max) (mm)
100
