Atlas

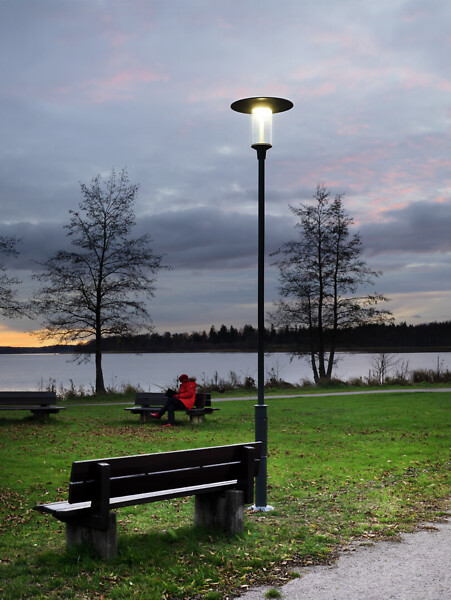

Atlas is a classic park luminaire that combines modern lighting technology, high impact resistance, and superior energy efficiency. Light distribution designed for area lighting makes Atlas an ideal solution for a wide range of applications in parks and squares as well as yards and footpaths. The luminaire can be customised to meet your needs. Atlas is made of high-quality durable materials, and it can be directly mounted on a Ø 60 mm post. A glare shield is available as an accessory that allows you to limit the light in the undesired direction. Additionally available as Dali-2, Night Dim and Casambi versions.

Read More
Show Product Versions Downloads

Product Overview

Die-cast aluminium housing. Aluminium top and clear, UV-protected polycarbonate diffuser.

Grey, RAL 7024 and black, RAL 9005.

Protection class I.

Pole mounting (60 mm).

Luminaire is delivered with 4,5 meter connection cable (H07RN-F). On/off and Casambi 3 x 1,0 mm2. Dali and Night Dim 5 x 1,5 mm2.

Wind surface area 1.1304 m2, top / 0.1086 m2, sides.

Installation height 4–5 m.

Number of ballasts:

On/off

B10A 8 pcs, B16A 13 pcs.

C10A 13 pcs, C16A 22 pcs, C20A 27 pcs.

Dali-2

B10A 12 pcs, B16A 20 pcs.

C10A 20 pcs, C16A 33 pcs.

Night Dim

B10A 12 pcs, B16A 20 pcs.

C10A 20 pcs, C16A 33 pcs.

Casambi

B10A 14 pcs, B16A 23 pcs.

C10A 23 pcs, C16A 38 pcs.

Colour temperature 4000 K. CRI > 70 / Ra > 70.

MacAdam 5 SDCM.

IP65.

IK10.

Fixed LED 33 W / 4500 lm.

On/off, Dali-2 and Night Dim, both with CLO function, and Casambi.

On/off, Casambi, Dali-2 and Night Dim, both with CLO function.

Ambient temperature range -30 … 35 °C, Casambi -25 … 35 °C.

Rated lifetime: L70 100,000 h (Ta25°C).

Power source service life: 100,000 h (Ta25°C).

Ventilation to prevent frost.

Available with various luminous flux packages and connecting cables on a project-specific basis.

Product Versions

Name Code Light source included Effective luminous flux (lm) Colour temperature (min) (K) Housing colour Degree of protection (IP) Length (mm) Width (mm) Height/depth (mm)
Atlas IP65 33W/740 PCC GR 4546502 Yes 4500 4000 Grey IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
Atlas IP65 33W/740 PCC BK a5atlc Yes 4500 4000 Black IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
Atlas IP65 33W/740 DA2 PCC GR a5atla-dali Yes 4500 4000 Grey IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
Atlas IP65 33W/740 DA2 PCC BK a5atlc-dali Yes 4500 4000 Black IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
Atlas IP65 33W/740 ND PCC GR a5atla-nightdim Yes 4500 4000 Grey IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
Atlas IP65 33W/740 ND PCC BK a5atlc-nightdim Yes 4500 4000 Black IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
Atlas IP65 33W/740 CA PCC GR a5atla-ca Yes 4500 4000 Grey IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
Atlas IP65 33W/740 CA PCC BK a5atlc-ca Yes 4500 4000 Black IP65 600 600 541
Fast lighting calculation
Add to favourites
More details
