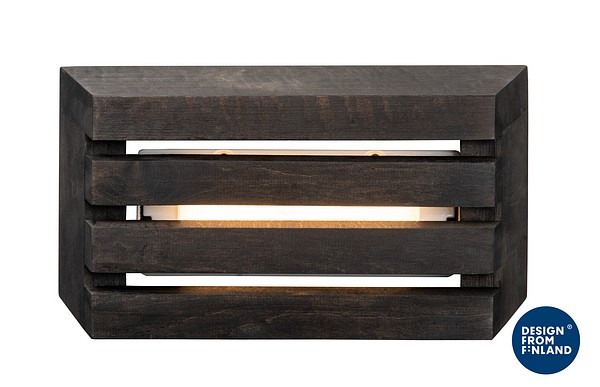

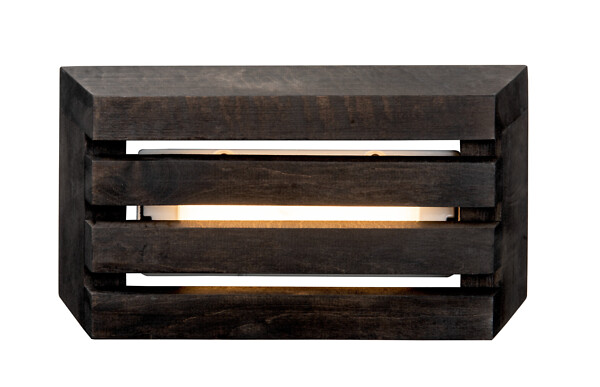

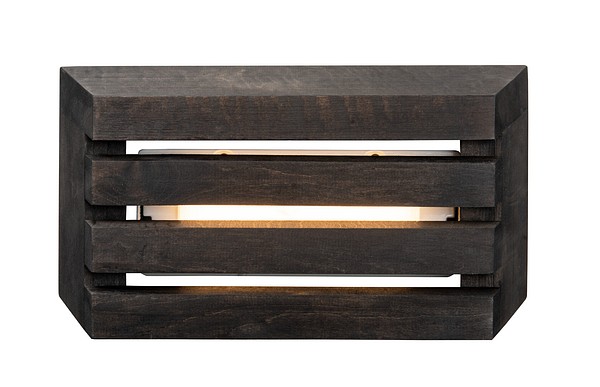

Saunaled H, black

Saunaled H Sauna luminaire 8W 2700K 500lm Dim phase cut-on; IP65; Protection cl. I; L70B50 15000h; LED not exchangeable; CRI>80; SDCM5; Ending; 3x2.5mm²; Housing al; Colour wh; Cover Plastic, opal

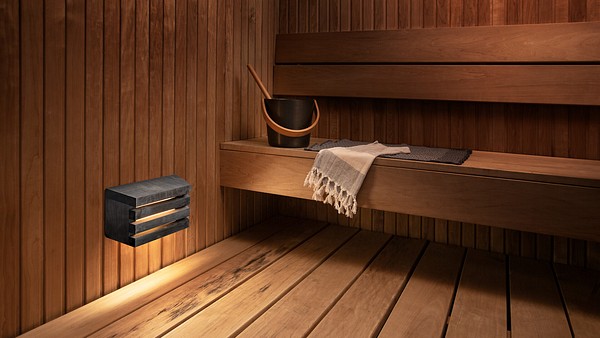

Airam's Saunaled range can be tinted to match your sauna with the Supi sauna wax from Tikkurila! The Saunaled light fixtures have been awarded the Design from Finland mark. The range consists of the vertical Saunaled V, horizontal Saunaled H, and the square shaped Saunaled Sq. The Sq and H models are now also available with black trim in addition to the traditional untreated alder. Black is a trendy, stylish, and atmospheric color for sauna interiors. A black sauna requires proper lighting. The Saunaled light is dimmable and features a warm white color temperature (2700 K).

Code

9610587

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

The housing is made from aluminum, the globe from plastic (PC), and the frame from alder.

Color untreated alder or black* (*Saunaled Sq and Saunaled H models, new color option).

Surface or flush mount.

Set screw terminals 3 x 2.5 mm2.

Mounting height max. 1 m.

Color temperature 2700K.

Color rendering index 80–89. CRI > 80 / Ra > 80.

Enclosure rating: IP65

Non-replaceable AC LED 8W 500 lm.

Dimmable.

Ambient temperature 5... 60 °C.

Useful life L70B50 15 000 h.

We recommend treating the wooden frame with wood preservative.

TRL = alder

Technical details

Codes and names
Airam code
A1SABB
GTIN
6435200303998
General name
Sauna luminaire
Product family
Saunaled Hor
Technical name
IP65 8W/827 DIM PCO BK
Mounting
Suitable for suspended mounting
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
No
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwed terminal
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Housing surface protection
Powder coating
Housing colour
White
Cover material
Plastic, opal
Type of grid
Matt
Control gear included
Yes
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
G
Emergency power supply system
None
Emergency power supply integrated
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
45
Nominal current (max) (mA)
45
Type of control gear
Not required
Suitable for lamp power (min) (W)
8
Suitable for lamp power (max) (W)
8
Luminaire efficacy (min) (lm/W)
62
Luminaire efficacy (max) (lm/W)
62
Maximum system power (W)
8
Luminaire efficacy (lm/W)
62
Power factor
0,90
Total harmonic distortion (THD) (%)
20
Total harmonic distortion
20
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
Yes
Dimming phase cut-on
Yes
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
With presence indicator
No
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
None
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM5
Light outlet
Direct
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
500
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
500
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
500
Colour temperature (min) (K)
2700
Colour temperature (max) (K)
2700
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
No
Lumen setting adjustable
Continuously variable
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
15000
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
10
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
10
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
5
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
60
Measurements
Width (mm)
322
Height/depth (mm)
186
Length (mm)
66
Built-in length (mm)
220
Built-in width (mm)
85
Built-in height/depth (mm)
45
