Saunaled V

Saunaled V Sauna luminaire 8W 2700K 500lm Dim phase cut-on; IP65; Protection cl. I; L70B50 15000h; LED not exchangeable; CRI>80; SDCM5; Ending; 3x2.5mm²; Housing al; Colour wh; Cover Plastic, opal

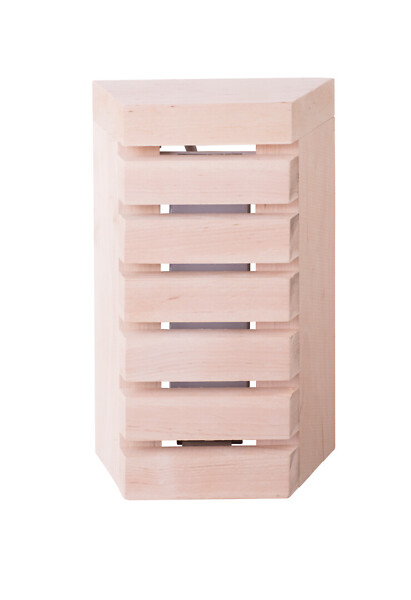

Saunaled V (vertical) is an elegant sauna luminaire with an integrated AC LED. Its frame is made in Finland using high-quality Finnish black alder. The dimming feature enables you to adjust the lighting levels to suit the mood. The dust- and waterproof luminaires are suitable for surface and recessed mounting. The Saunaled V can also be mounted in a corner. We recommend treating the wood with wood preservative before use. You can varnish the wooden parts to suit the colour scheme of your decor.

Code

4126228

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Aluminium body, plastic diffuser (PC), untreated black alder frame.

Color untreated black alder.

Surface and recessed mounting.

Screw couplers 3 x 2.5 mm2.

Max. installation height of 1 m.

Colour temperature 2,700 K.

Colour rendering index 80–89. CRI > 80 / Ra > 80.

Protection rating IP65.

Integrated AC LED 8 W 500 lm.

Dimmable.

Ambient temperature range 5 ... 60 °C.

Rated lifetime L70B50 15,000 h

Treating the wooden frame with wood preservative is recommended.

TRL = black alder.

Technical details

Codes and names
Airam code
A1SAAC
GTIN
6435200238870
General name
Sauna luminaire
Product family
Saunaled Vert
Technical name
IP65 8W/827 DIM PCO TRL V
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Suitable for emergency lighting
No
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwed terminal
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Structure
Lamp type
LED not exchangeable
With lamp
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Housing surface protection
Powder coating
Housing colour
White
Cover material
Plastic, opal
Type of grid
Matt
Control gear included
Yes
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
G
Containing product according to 2019/2020/EU
Yes
Emergency power supply integrated
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
45
Nominal current (max) (mA)
45
Type of control gear
Not required
Suitable for lamp power (min) (W)
8
Suitable for lamp power (max) (W)
8
Maximum system power (W)
8
Luminaire efficacy (lm/W)
62
Power factor
0,90
Total harmonic distortion
20
Dimming and control
Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
Yes
Dimming phase cut-on
Yes
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
Other
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM5
Light outlet
Direct
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
500
Colour temperature (min) (K)
2700
Colour temperature (max) (K)
2700
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
15000
Rated life time L80/B50 at 25 °C
10000
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
10
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
15
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
5
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
60

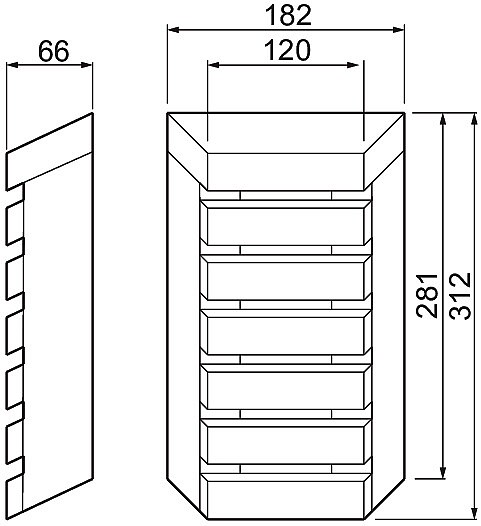

Measurements
Width (mm)
182
Height/depth (mm)
312
Length (mm)
66
Built-in length (mm)
85
Built-in width (mm)
220
Built-in height/depth (mm)
45
