Airflood PIR IP44 30W/840 2400lm BK

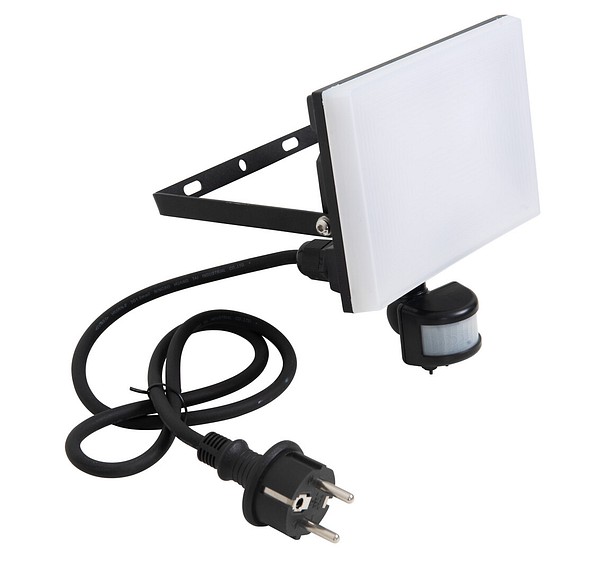

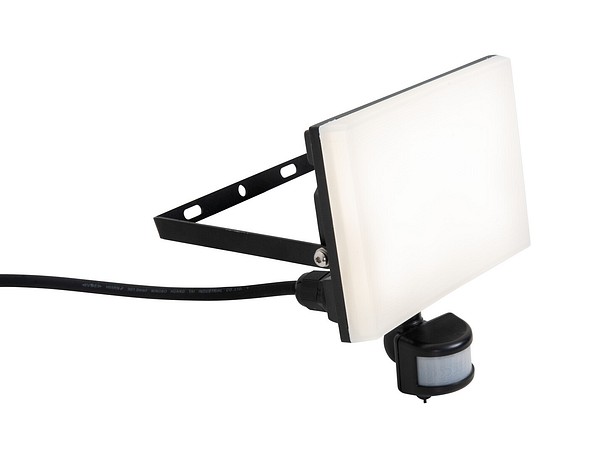

A 30-W LED floodlight with a motion detector for various lighting applications in the yard or garden. The borderless design ensures even light production along the entire surface of the fixture. Adjustable lighting angle. High-pressure die cast aluminum frame in black. Globe made from polycarbonate. Non-replaceable LED 30 W 2 400 lm 4000 K. IP44, IK08. Plug socket connection with a rubber cable of 0.8 m.

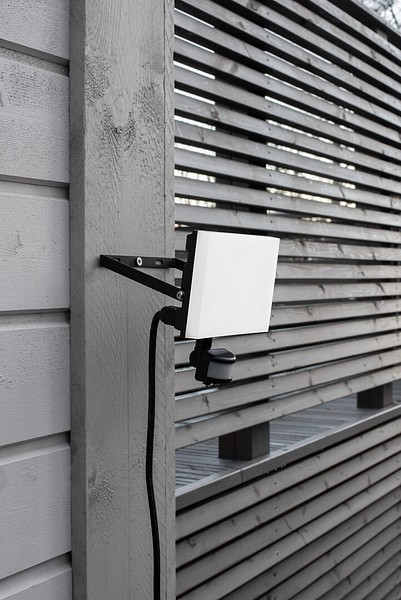

Modern and compact, the Airflood led floodlight is designed for safe and practical lighting of yards, storehouses, traffic routes and car parks. With its edgeless design, the floodlight looks perfect on many different buildings, and the front panel sheds a pleasantly uniform light. Each floodlight has an adjustable lighting angle. You can choose a black or a white model. The floodlights have a plug coupling and a rubber cable. Models with sensor also available.
The frame is made of pressure moulded aluminium and the globe of polycarbonate.
White, RAL9010 and black, RAL9011.
Protection class I.
Wall installation.
Plug coupling and rubber cable 0,8 m.
Installation height 2–4 m.
Colour temperature 4000K, CRI > 80 / Ra > 80.
IP44.
IK08.
Fixed led: 10W / 800 lm, 20W / 1600 lm, 30W / 2400 lm, 50W / 4000 lm.
Operating ambient temperature -20 … 35 °C.
Useful life L70 25 000 h.
- Code
- 4547216
Downloads
Technical info
- GTIN
- 6435200278685
- Code
- 4547216
- Electrical number (FIN)
- 4547216
- Electrical number (SWE)
- 7766749
Product versions
| Item description | Code | GTIN | ||
|---|---|---|---|---|
| Airflood IP44 10W/840 800lm BK |
|
4547200 |
6435200277930 |
|
| Airflood IP44 20W/840 1600lm BK |
|
4547201 |
6435200277947 |
|
| Airflood IP44 30W/840 2400lm BK |
|
4547202 |
6435200277954 |
|
| Airflood PIR IP44 10W/840 800lm BK |
|
4547214 |
6435200278661 |
|
| Airflood PIR IP44 20W/840 1600lm BK |
|
4547215 |
6435200278678 |
|
| Airflood PIR IP44 30W/840 2400lm BK |
|
4547216 |
6435200278685 |
|
| Airflood PIR IP44 50W/840 4000lm BK |
|
4547217 |
6435200278692 |
|
| Airflood PIR IP44 20W/840 1600lm WH |
|
4547218 |
6435200280534 |
|
| Airflood PIR IP44 30W/840 2400lm WH |
|
4547219 |
6435200280541 |
