Airflood
Floodlight

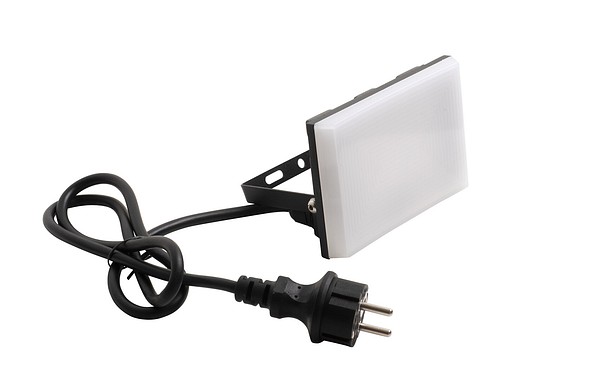

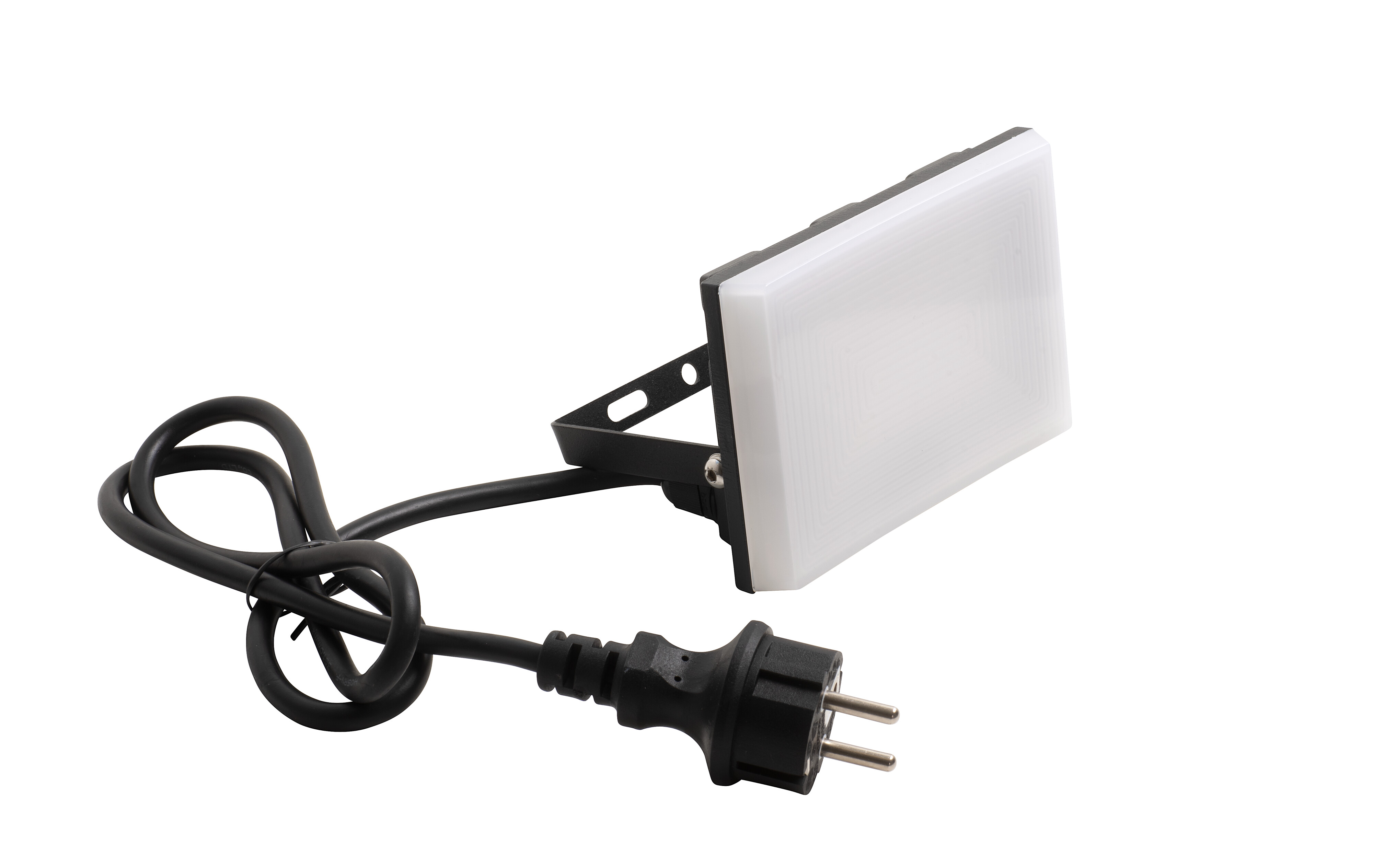

Modern and compact, the Airflood led floodlight is designed for safe and practical lighting of yards, storehouses, traffic routes and car parks. With its edgeless design, the floodlight looks perfect on many different buildings, and the front panel sheds a pleasantly uniform light. Each floodlight has an adjustable lighting angle. You can choose a black or a white model. The floodlights have a plug coupling and a rubber cable. Models with sensor also available.
Product versions
Technical info
| Item description | GTIN | Code | ||
|---|---|---|---|---|
|
Airflood IP44 10W/840 800lm BK | 6435200277930 |
4547200 |
|
|
Airflood IP44 20W/840 1600lm BK | 6435200277947 |
4547201 |
|
|
Airflood IP44 30W/840 2400lm BK | 6435200277954 |
4547202 |
|
|
Airflood PIR IP44 10W/840 800lm BK | 6435200278661 |
4547214 |
|
|
Airflood PIR IP44 20W/840 1600lm BK | 6435200278678 |
4547215 |
|
|
Airflood PIR IP44 30W/840 2400lm BK | 6435200278685 |
4547216 |
|
|
Airflood PIR IP44 50W/840 4000lm BK | 6435200278692 |
4547217 |
|
|
Airflood PIR IP44 20W/840 1600lm WH | 6435200280534 |
4547218 |
|
|
Airflood PIR IP44 30W/840 2400lm WH | 6435200280541 |
4547219 |
The frame is made of pressure moulded aluminium and the globe of polycarbonate.
White, RAL9010 and black, RAL9011.
Protection class I.
Wall installation.
Plug coupling and rubber cable 0,8 m.
Installation height 2–4 m.
Colour temperature 4000K, CRI > 80 / Ra > 80.
IP44.
IK08.
Fixed led: 10W / 800 lm, 20W / 1600 lm, 30W / 2400 lm, 50W / 4000 lm.
Operating ambient temperature -20 … 35 °C.
Useful life L70 25 000 h.
White, RAL9010 and black, RAL9011.
Protection class I.
Wall installation.
Plug coupling and rubber cable 0,8 m.
Installation height 2–4 m.
Colour temperature 4000K, CRI > 80 / Ra > 80.
IP44.
IK08.
Fixed led: 10W / 800 lm, 20W / 1600 lm, 30W / 2400 lm, 50W / 4000 lm.
Operating ambient temperature -20 … 35 °C.
Useful life L70 25 000 h.
