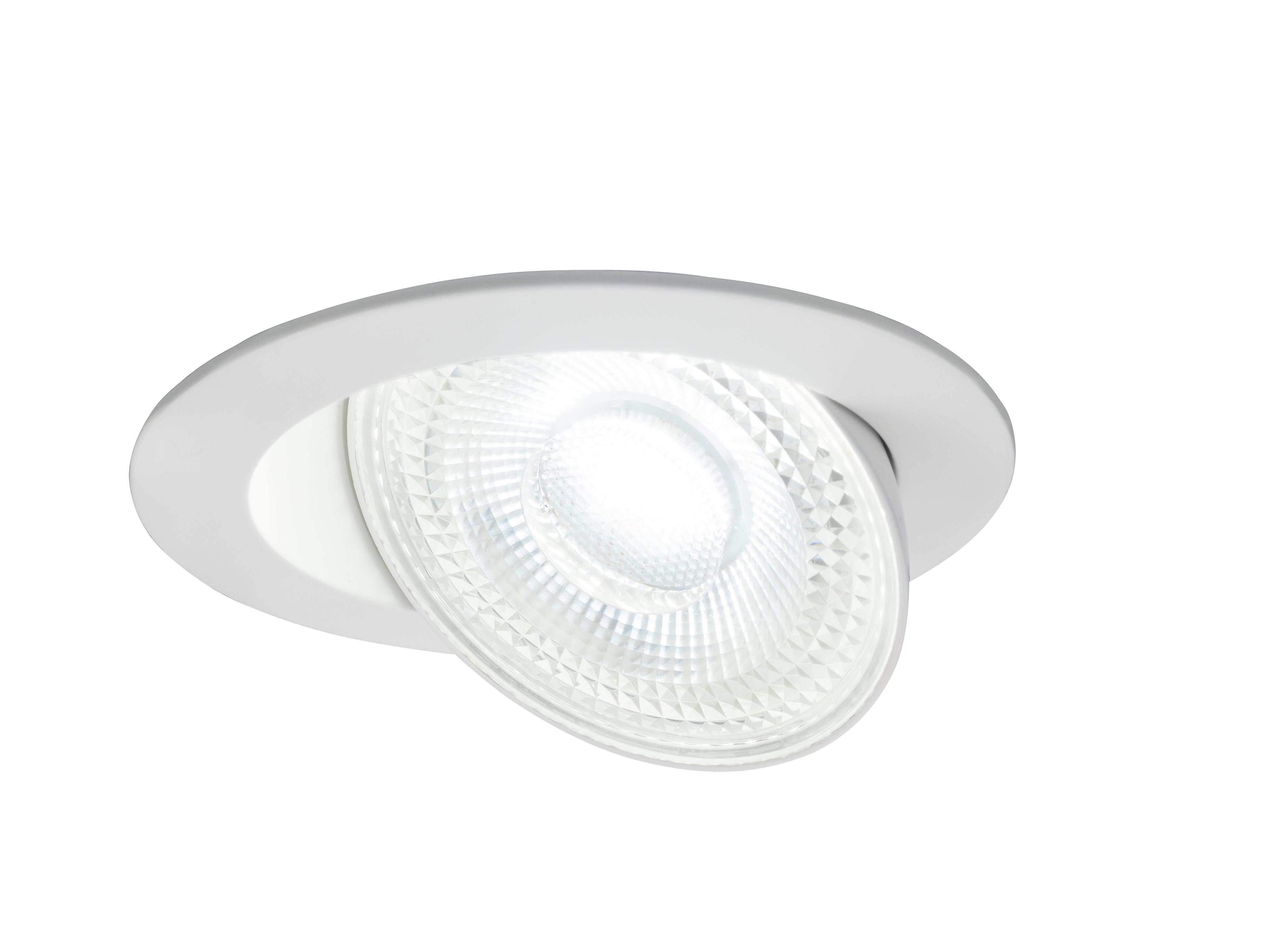

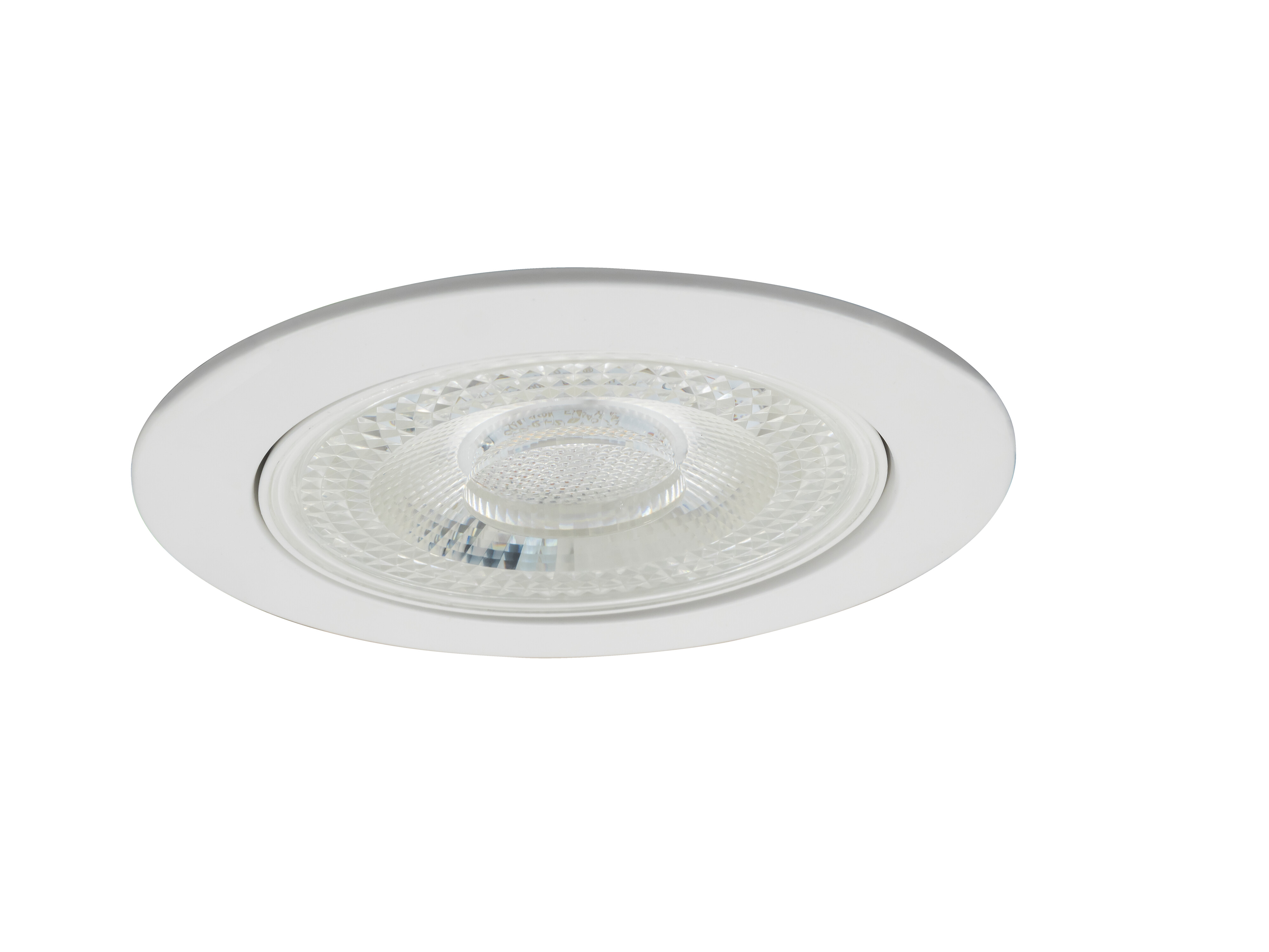

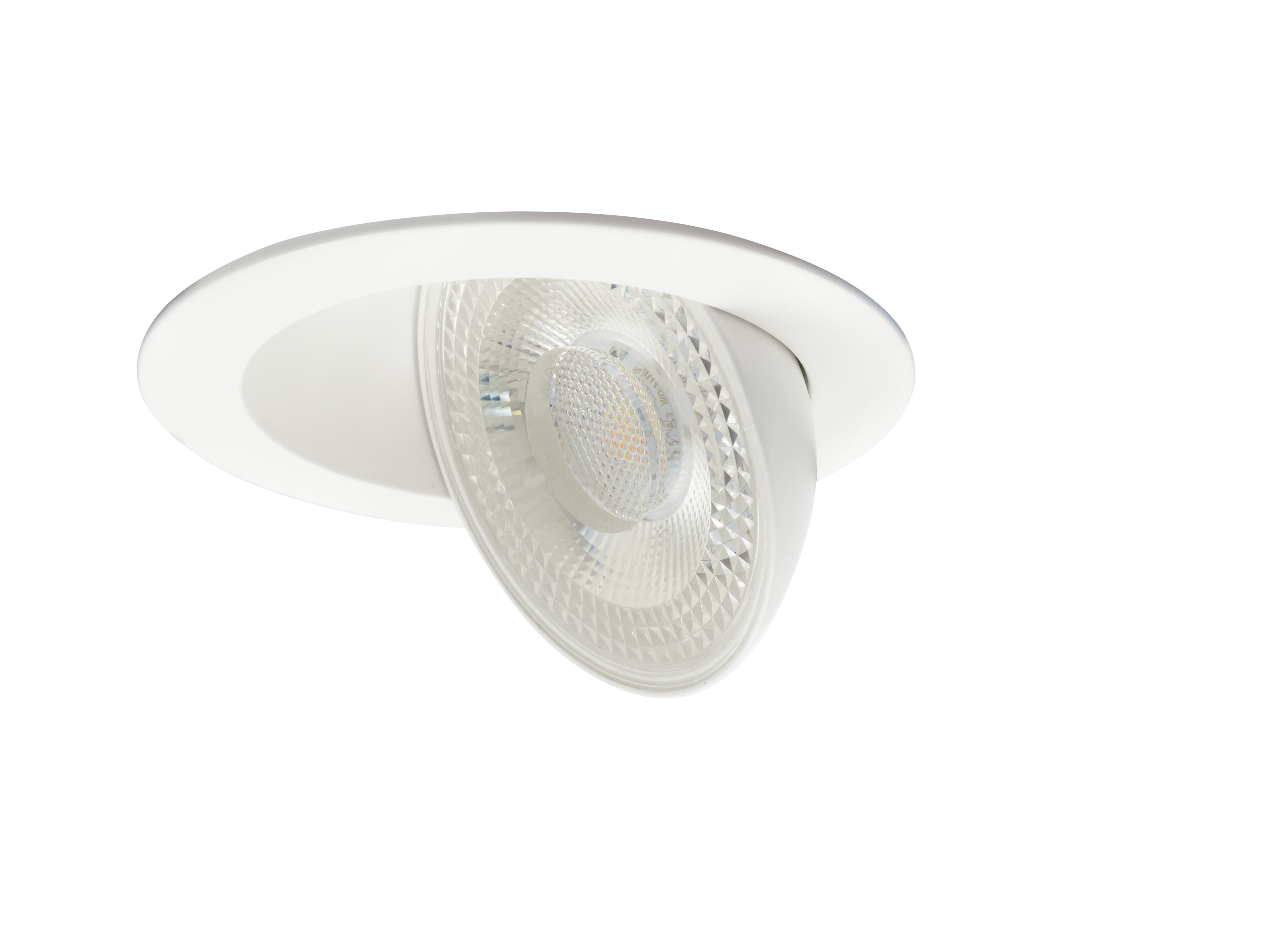

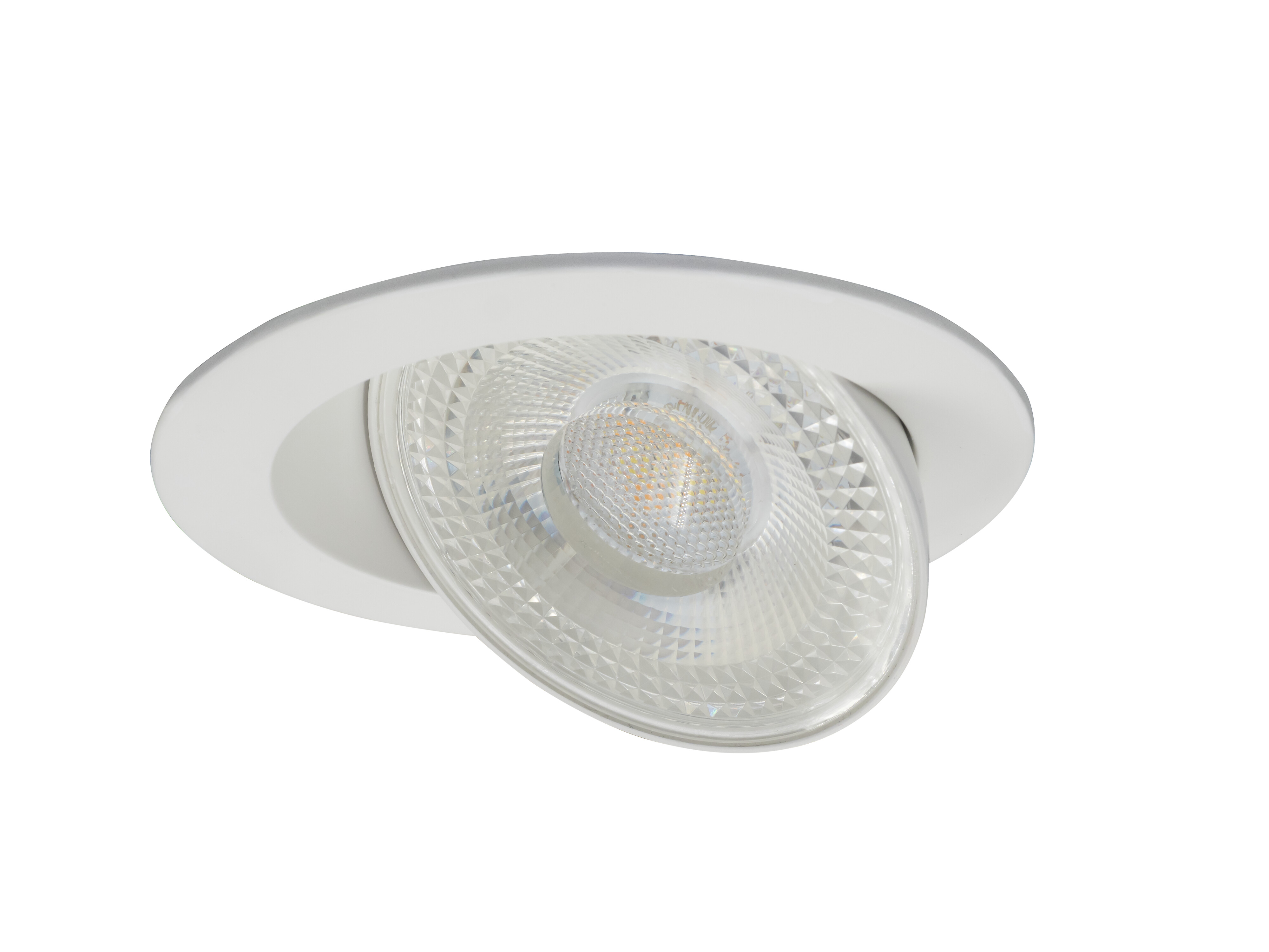

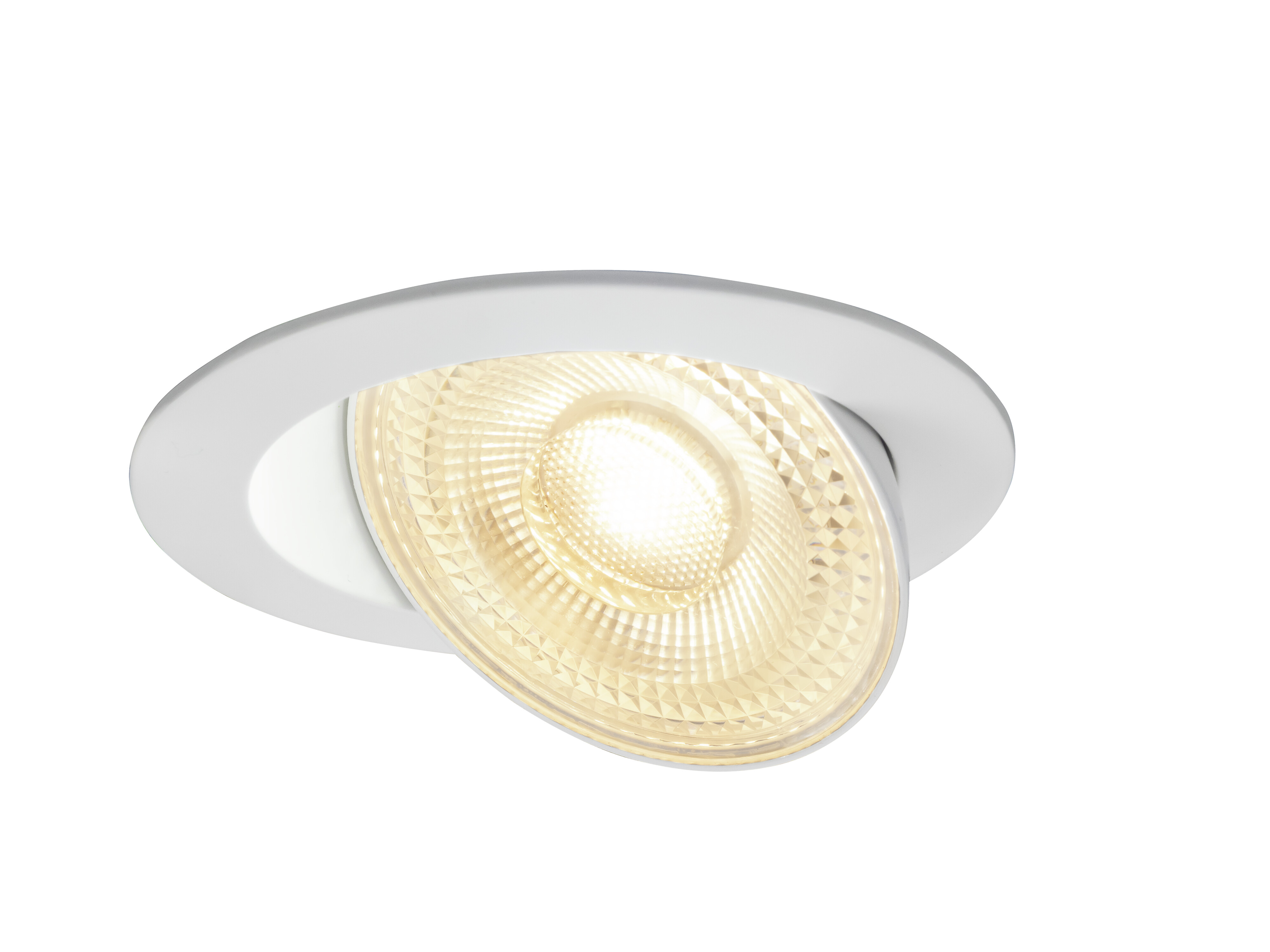

Ailo Tilt
Recessed Downlight
AILO TILT IP20 6,5W/3CCT DIM WH
Ailo Tilt recessed downlight with 90° tilt and selectable colour temperature (2700/4000/6500 K). CRI > 80. IP20. Cut-out Ø 90 mm. 6.5 W LED, 700–780 lm. Triac dimmable.
Ailo Tilt is a versatile recessed downlight designed for dry indoor areas of the home. In addition to general lighting, its wide 90° tilt angle enables targeted accent lighting even in challenging spaces or in rooms with steeply sloped ceilings. To reach the extreme tilt position, gently press and rotate the edge of the light module. The colour temperature is selected before installation via the driver switch (warm white 2700 K – cool white 4000 K – cold white 6500 K).
- GTIN
- 6435200019561
- Code
- 9610770
Technical info
Product codes
- GTIN
- 6435200019561
- Code
- 9610770
Housing and diffuser made of polycarbonate.
Housing colour white.
Tilt angle 90° (gimbal).
Beam angle 36°.
Protection class II.
Recessed ceiling installation; cut-out Ø 90 mm.
Product dimensions: Ø 105 mm, height 40 mm.

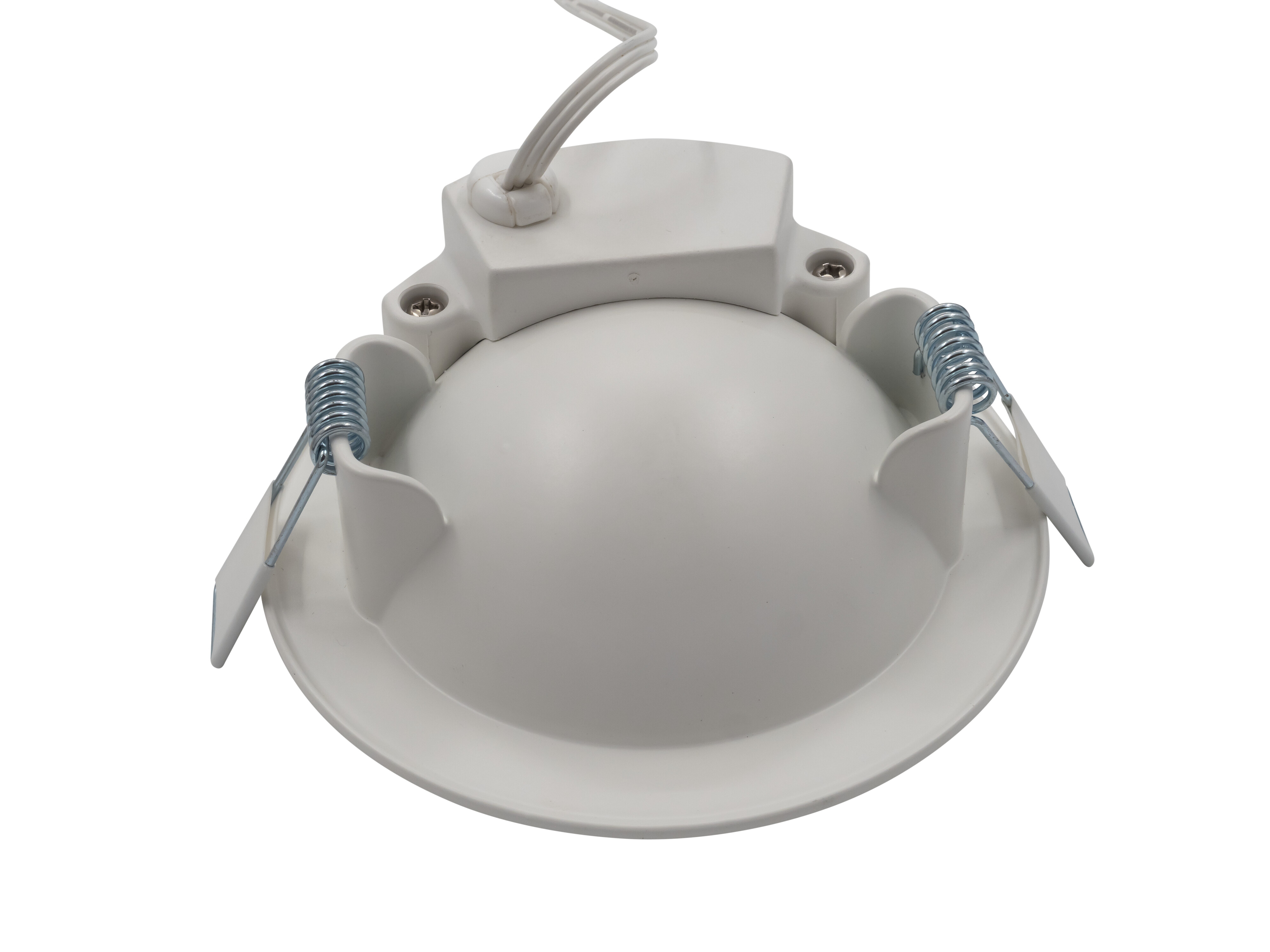

Wiring and loop-through in separate junction box, included.
CRI > 80.
IP20/IP20.
Fixed LED 6.5 W with 3-CCT switch: 700 lm (2700 K), 780 lm (4000/6500 K).
Triac dimmable.
220–240 V.
Select the desired colour temperature from the driver switch before installation.
Operating temperature –0 … +25 °C.
Lifetime L70 30,000 h (Ta25 °C).
Housing colour white.
Tilt angle 90° (gimbal).
Beam angle 36°.
Protection class II.
Recessed ceiling installation; cut-out Ø 90 mm.
Product dimensions: Ø 105 mm, height 40 mm.
Wiring and loop-through in separate junction box, included.
CRI > 80.
IP20/IP20.
Fixed LED 6.5 W with 3-CCT switch: 700 lm (2700 K), 780 lm (4000/6500 K).
Triac dimmable.
220–240 V.
Select the desired colour temperature from the driver switch before installation.
Operating temperature –0 … +25 °C.
Lifetime L70 30,000 h (Ta25 °C).
