Linear
LED profile system

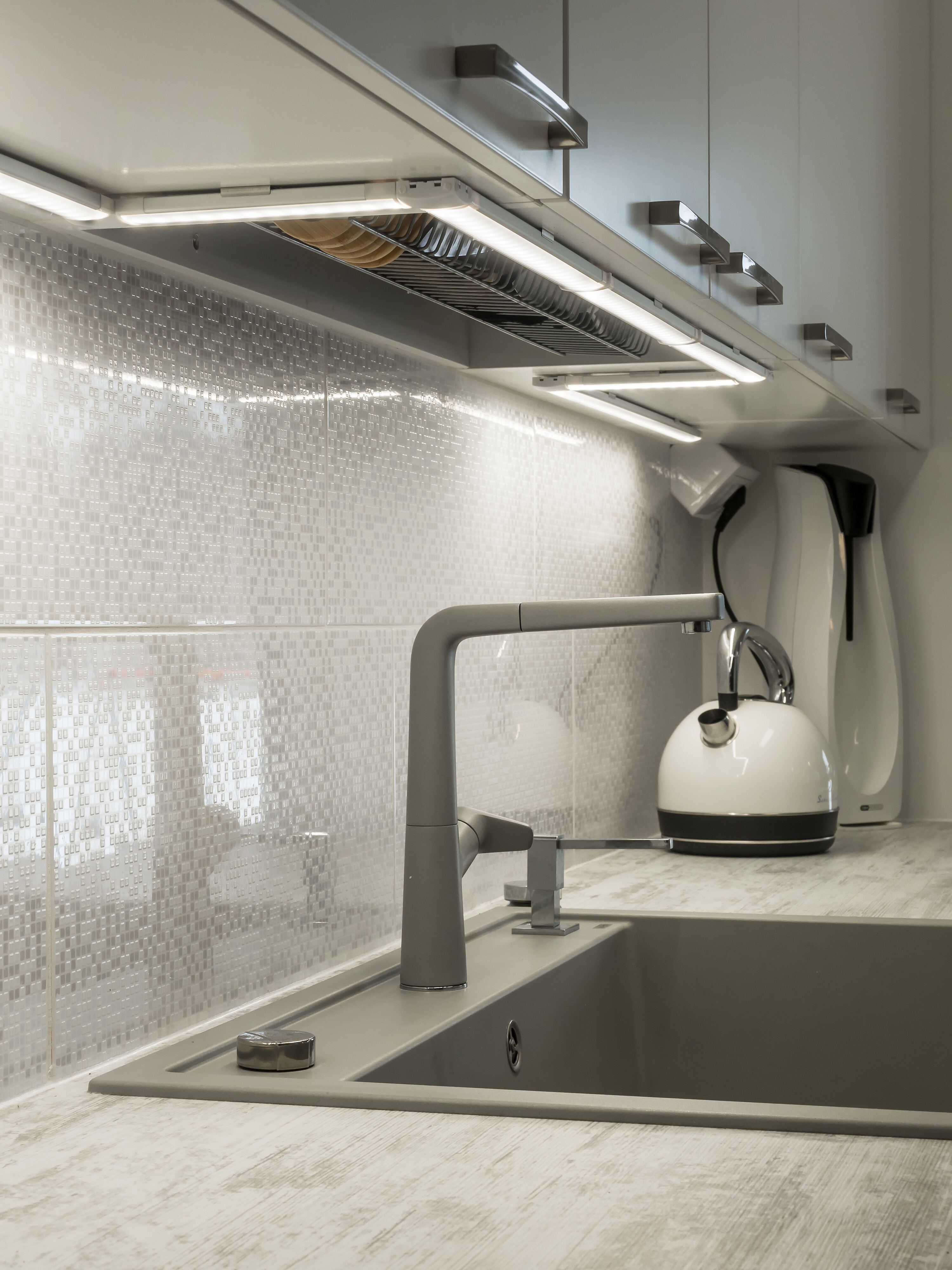

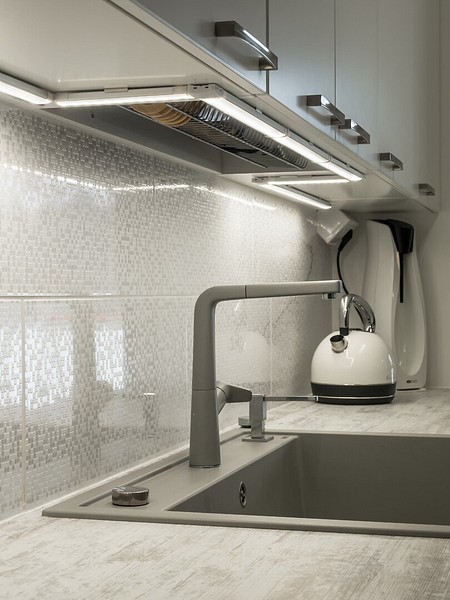

A versatile and modular LED profile system with integrated LEDs. Build your own lighting setup by combining different components to suit your needs. Available in various profile lengths and two colour temperatures: warm white (3000 K) and cool white (4000 K). LED profiles and accessories are sold separately. Connect profiles directly or use connectors and extension cables to create corners and custom layouts. The unique design ensures seamless, uninterrupted light even at connection points. Provides up to 5 m of continuous light with an 80 W LED driver! Drip-protected Linear profiles are ideal for under-cabinet lighting. Mount the Linear system with the included brackets at a 45° angle or directly onto a surface. Optional accessories include compatible on/off switches, motion sensors, or dimmer switches to suit your application. 24 V drivers available in 40 W, 60 W, and 80 W.
Technical info
| Item description | GTIN | Code | ||
|---|---|---|---|---|
|
Linear 150 IP21 2,5W/830 200lm PCO | 6435200230607 |
4118792 |
|
|
Linear 300 IP21 5W/830 450lm PCO | 6435200286369 |
4146626 |
|
|
Linear 600 IP21 9W/830 850lm PCO | 6435200286406 |
4146628 |
|
|
Linear 1000 IP21 15W/830 1300lm PCO | 6435200286246 |
4146624 |
|
|
Linear 300 IP21 5W/840 450lm PCO | 6435200286321 |
4146627 |
|
|
Linear 600 IP21 9W/840 850lm PCO | 6435200286437 |
4146629 |
|
|
Linear 1000 IP21 15W/840 1400lm PCO | 6435200286284 |
4146625 |
Body colour: grey.
Protection class III.
Luminous flux options:
LED 2.5 W 200 lm
LED 5 W 450 lm
LED 9 W 850 lm
LED 15 W 830 1300 lm / LED 15 W 840 1400 lm
Colour temperatures: 3000 K and 4000 K.
IP21.
Maximum Linear profile lengths with DC 24 V LED driver:
40 W: max 2.3 m (35 W)
60 W: max 3.6 m (55 W)
80 W: max 5 m (75 W)
Operating temperature: 0 … 25 °C.
Service life L70 40,000 h.
